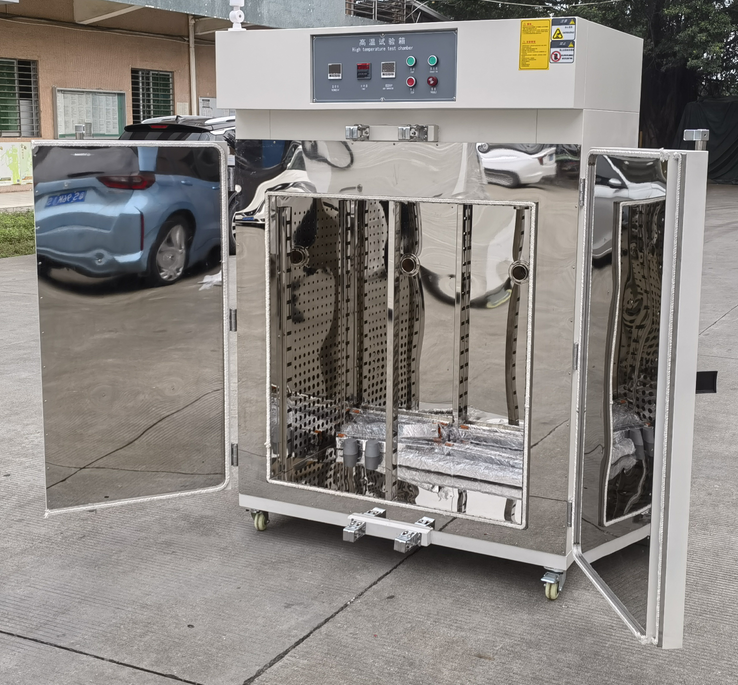

UP-6196 Heating Drying Oven with Intelligent Numerical Display and
Uniform Temperature Distribution
This advanced heating drying oven features intelligent numerical
display technology and ensures uniform temperature distribution
throughout the chamber. The innovative cavity preheating system
with evenly distributed heating elements provides precise
temperature control and energy-efficient operation.
Advanced Heating Technology
The oven utilizes advanced cavity preheating technology with
heating elements evenly distributed around the inner chamber. This
system preheats the cavity inner wall, then uses heat transfer and
forced-fan convection to ensure every point in the chamber
accurately achieves and maintains the set temperature value,
guaranteeing uniform temperature distribution.
Technical Specifications
| Specification | UP-6196-40 | UP-6196-70 | UP-6196-130 |
|---|
| Product Model | Thermostatic Drying Oven |
| Convection Mode | Forced Convection |
| Control System | Microprocessor PID |
| Temperature Range (°C) | RT+5°C~250°C |
| Temperature Accuracy (°C) | 0.1 |
| Temperature Fluctuation (°C) | ±0.5 (50~240°C range) |
| Temperature Uniformity | 2% (50~240°C range) |
| Timer Range | 0~99h or 0~9999min (selectable) |
| Working Environment | Ambient: 10~30°C, Humidity<70% |
| Insulation Materials | Imported Environmental Protection Material |
| External Dimensions (H×W×D) | 570×580×593mm | 670×680×593mm | 770×780×693mm |
| Internal Dimensions (H×W×T) | 350×350×350mm | 450×450×350mm | 550×550×450mm |
| Interior Volume (L) | 40 | 70 | 130 |
| Interior Steel Materials | SUS304 Stainless Steel |
| Standard Trays | 2 |
| Power (W) | 770 | 970 | 1270 |
| Supply Voltage | 220V/50Hz |
| Net Weight (KG) | 40 | 48 | 65 |
| Shipping Weight (KG) | 43 | 51 | 69 |
| Packing Size (H×W×D) | 690×660×680mm | 790×760×680mm | 890×860×780mm |
Ergonomic Design Features
- Classic laboratory color design with international fashion styling
and arc-shaped contours for optimal operational comfort
- Integrated design featuring original exterior handle and LCD screen
with ergonomic structure and comfortable viewing angles
- Adjustable mesh shelf intervals and quantities to meet specific
customer requirements
- Comfortable vertical structure maximizing work chamber capacity
with upper working area for convenient access
- Double door design for easy sample observation and temperature
stability maintenance with bell-type lighting system
- Modern manufacturing using laser cutting and CNC bending technology
for sheet metal parts
- Cold-rolled sheets treated with three-line acidification anti-rust
technology
- Incubator surface finished with professional plastic spraying
workmanship
Product Images
Comprehensive Service Support
We provide consultative selling services throughout the entire
business process:
- Customer Inquiry Process: Discuss testing requirements and technical details, suggest
suitable products, and provide competitive pricing
- Specifications Customization: Create detailed drawings for custom requirements, provide
reference photos, and confirm final solutions and pricing
- Production and Delivery: Manufacture according to confirmed requirements, provide
production progress photos, conduct factory or third-party
calibration, and ensure timely delivery
- Installation and After-Sales: Provide field installation services and comprehensive after-sales
support
Frequently Asked Questions
Are you a Manufacturer? Do you offer after-sales service? How can I
ask for that? And how about the warranty?
Yes, we are professional manufacturers of Environmental Chambers,
Leather shoe testing equipment, and Plastic Rubber testing
Equipment. Every machine includes a 12-month warranty after
shipment with free maintenance. Considering sea transportation, we
extend an additional 2 months for international customers. If your
machine requires service, contact us via email or phone. We
diagnose issues through conversation or video chat and provide
solutions within 24-48 hours.
What about the delivery term?
Standard machines in stock: 3-7 working days. Custom orders: 15-20
working days after payment confirmation. We accommodate urgent
requirements with special arrangements.
Do you accept customization services? Can I have my logo on the
machine?
Yes, we offer both standard and customized machines according to
your specifications. We provide OEM and ODM services, including
custom logo application on equipment.
How can I install and use the machine?
We provide comprehensive English operation manuals and videos via
email. Most machines ship fully assembled - simply connect power
and begin operation. We offer on-site installation assistance when
necessary.
